ROCKJOCK 4X4 - JT GLADIATOR REAR BUMP STOP KIT (2 IN.)

RockJock's 2 Inch Rear Bump Stop Kit for all JT Gladiator models provides proper bump stop extension when using our RJ-154401-101 JT lifted rear coil springs. These components simply bolt-on to the existing bump stop pads on the differential housing.
Spacers are laser cut and formed 3/16 in. steel. Finish is semi-gloss black powder coat on the spacers and zinc plating on the hardware.

Kit Fits:

• JT Gladiator – All Models

Kit Includes:

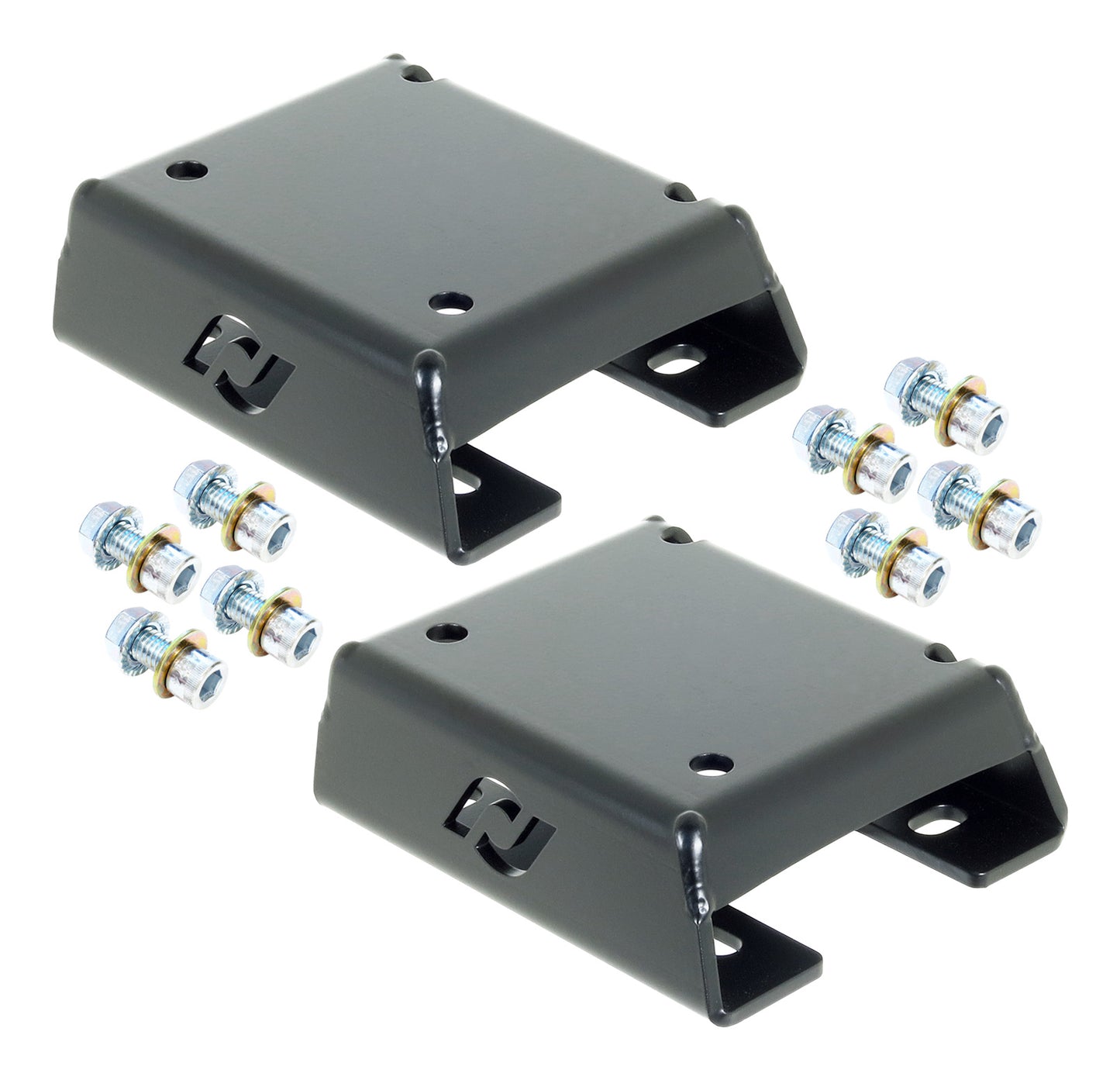

• (2) Steel Bump Stop Spacers (fit right or left side)
• All Required Hardware

Component Specs.:

• Spacers are 2.000 in. tall
• Spacers are laser cut and formed 3/16 in. steel

Notes:

• Drilling Required! These components align with 2 existing holes per side and the other 2 holes must be drilled for installation.
• For use with our RJ-154401-101 3 1/2 in. lift coil springs
• May be used on all factory differential housings and most aftermarket axle housings

Instruction Manual:

• RJ-151401-101 Kit

Parts List:

• Bump Stop Spacer:  RJ-151401-1
• 3/8 in.-16 x 7/8 in. Long Socket Head Allen Bolt:  RJ-501205-1
• 3/8 in. Flat Washer:  CE-90108A415
• 3/8 in.-16 Serrated Flange Nut:  CE-98233A300
